Multi-color Fiberglass Asphalt Shingles

上架時間:2024-06-04
瀏覽次數:99
產品類型:
產品詳情

Product overview:

Multi-color fiberglass asphalt shingles is a tile-shape waterproofing material. With fiberglass felt as matrix, the products are dipped with high-quality petroleum asphalt, covered with multi-color ceramic particles on one side and isolating materials on the other sideIt has the advantages of lightness, various shapes, rich colors, firmness and durability, which make the house appearance more attractive and elegant.

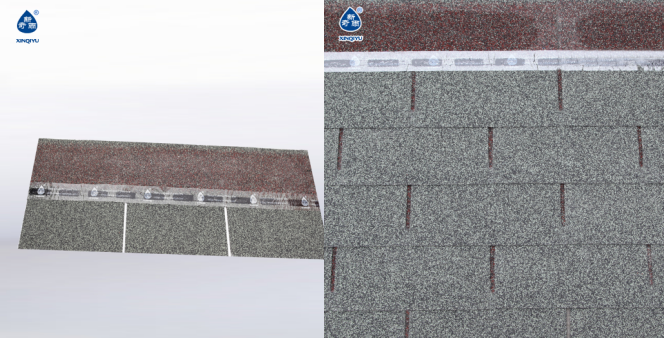

Single-decked Type1717488618892647.png

Components:

Asphaltfiberglass felt,

multi-color ceramic particles


Specifications:

Length——1000±3mm

Width——333±3mm

Weight——Approx.10kg/㎡


Feature:

Self-contained adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. villaresorttownhouse)

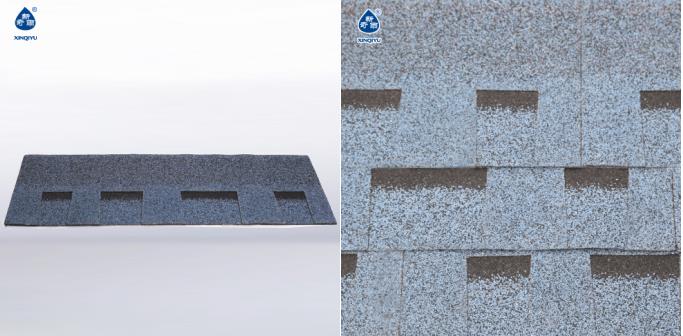

Double-decked Type1717489245405706.jpg


Components:

Asphaltfiberglass felt,

multi-color ceramic particlesSpecifications:

Length——1000±3mm

Width——333±3mm

Weight——Approx.12.8kg/㎡


Feature:

Self-contained adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villaresorttownhouse)


Gothic type1717489356172675.jpg

Components:

Asphaltfiberglass feltmulti-color ceramic particles


Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡


Feature:

Self-contained fully-adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villaresorttownhouse)

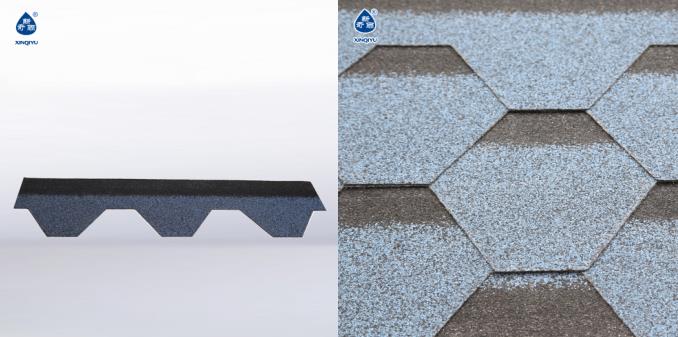

Mosaic type1717489368139702.jpg

Components:

Asphaltfiberglass feltmulti-color ceramic particles


Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡


Feature:

Self-contained fully-adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villaresorttownhouse)

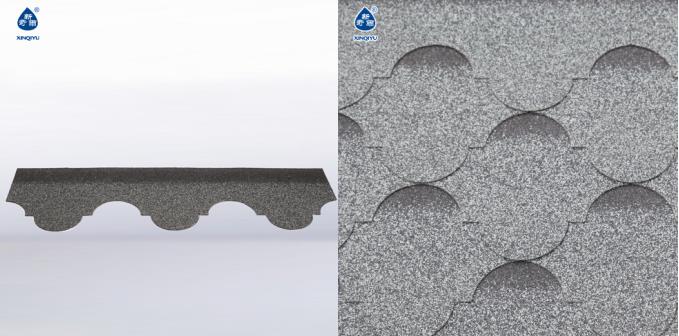

Lantern type1717489380164125.jpg

Components:

Asphaltfiberglass felt, multi-color ceramic particles


Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡


Feature:

PATENTED product with fully-adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villaresorttownhouse)


Fish scale type瀝青瓦6.jpg

Components:

Asphaltfiberglass feltmulti-color ceramic particles


Specifications:

Length——1000±3mm

Width——320±3mm

Weight——Approx.8.5kg/㎡


Feature:

PATENTED product with fully-adhesive tape


Application:

Cabin & concrete roof whose slope is between 10 degrees and 80 degrees (e.g. Villaresorttownhouse)



Technical index:  GB/T20474-2006


Items

Plane asphalt shingles

Laminated asphalt   shingles

Content of soluble components

1000

1800

TensionN/50mm

Longitudinal

                500

Horizontal

                400

Heat resistance 90℃

No sliding, flowing or dripping

Flexibility10℃

No cracking

Tear strength N≥

9

     Watertightness 0.1Mpa,30min

No leaking

Resistance to nail pulling /N≥

75


Colors available:

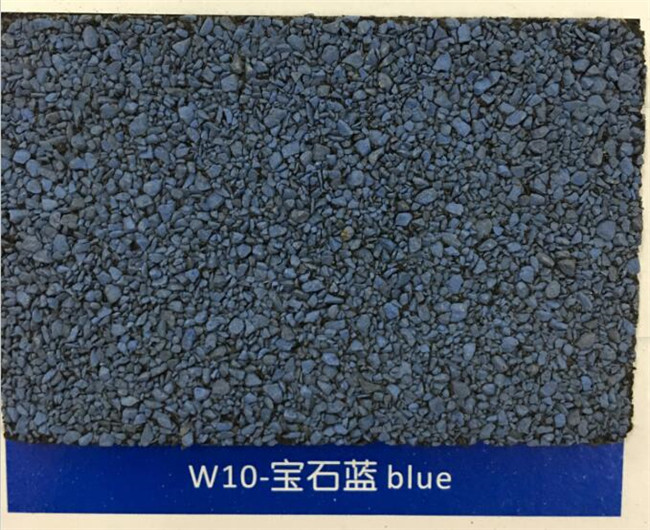

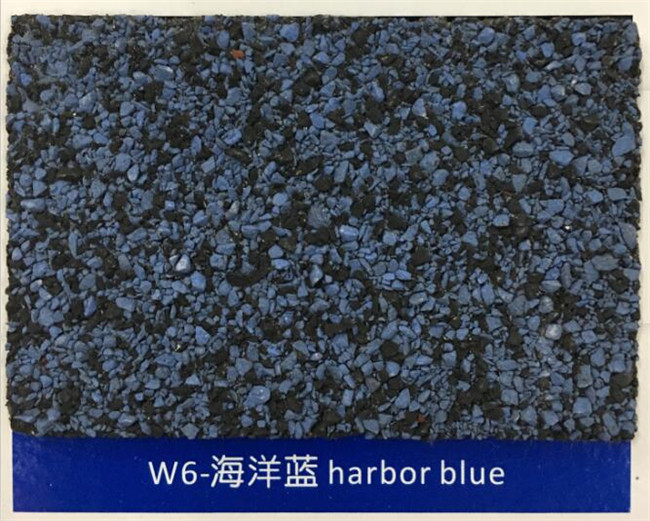

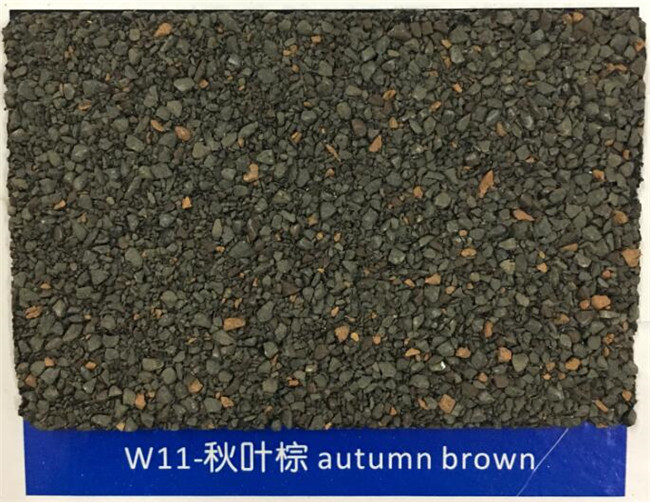

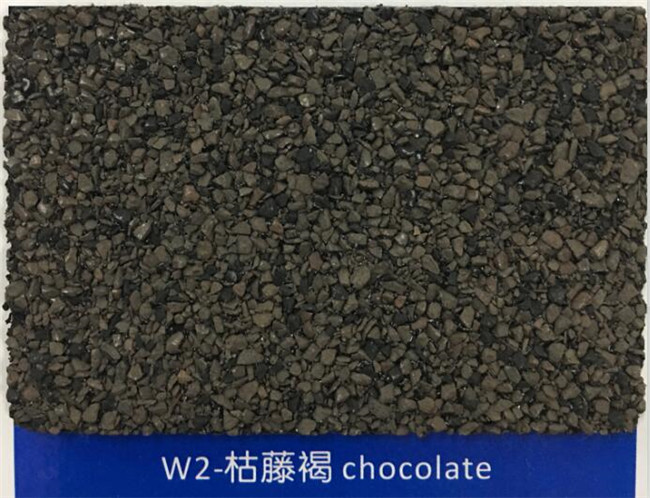

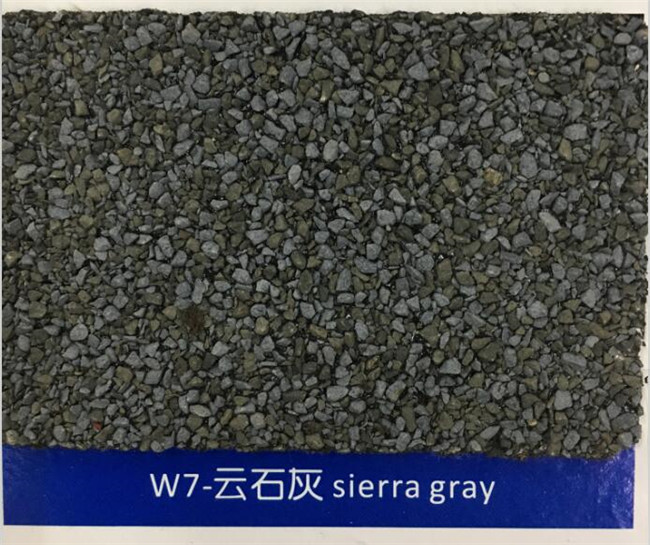

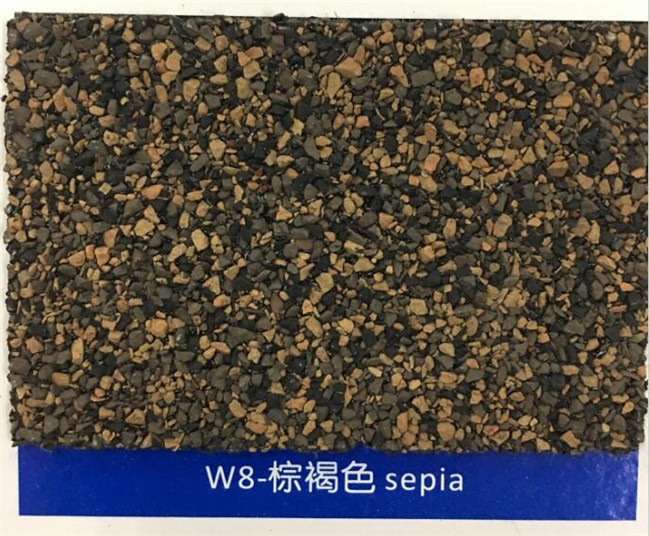

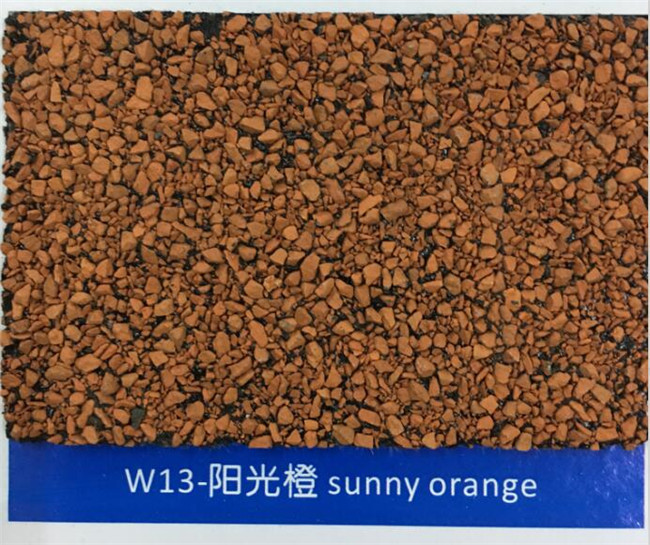

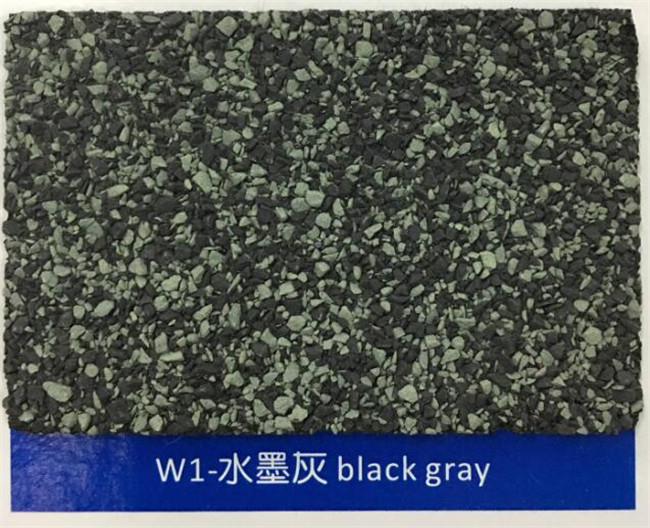

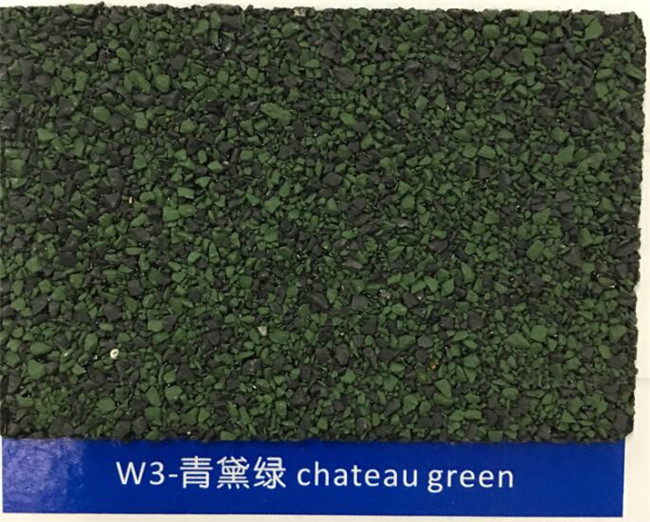

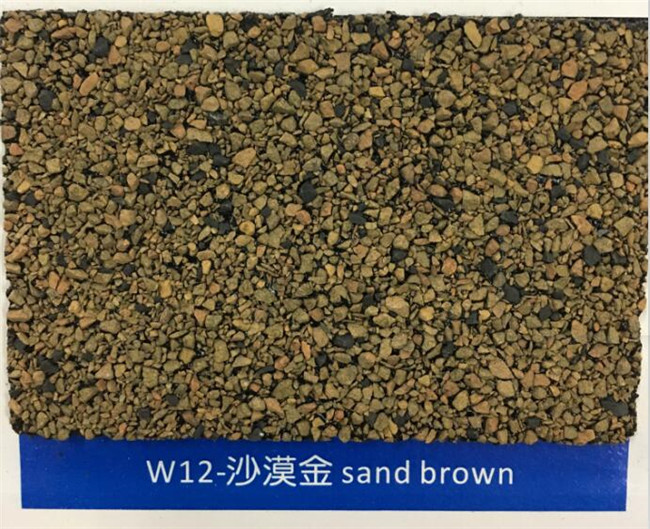

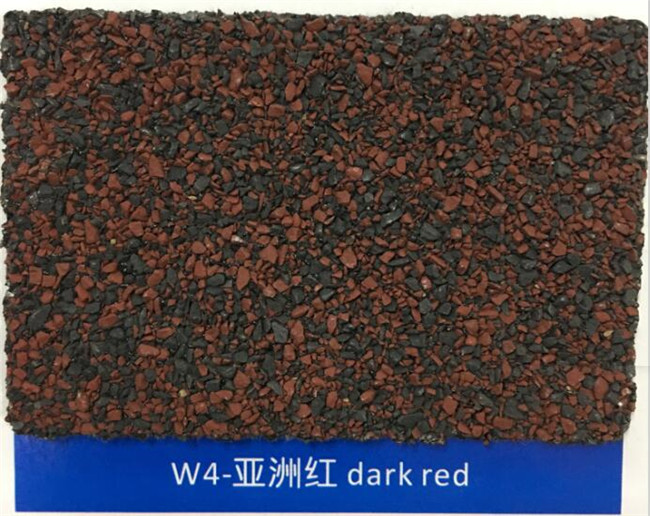

W-1 black grayW-2 chocolateW-3 chateau greenW-4 dark red ,W-5 blackW-6 harbor blueW-7 sierra gray, W-8 sepiaW-9 terracottaW-10 blueW-11 autumn brownW-12 sand brown W-13 sunny orange.
